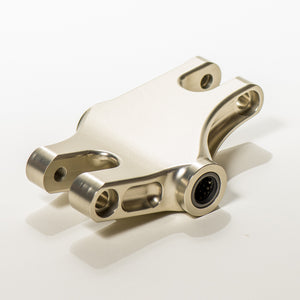

Ducati Linear Suspension Link 848 1098 1198 Streetfighter
Developed and tested on our 1098R, this Ducati linear suspension link has a new and optimized geometry compared to the other links out there. The result is that there is no need to modify the shock length for the suspension to work properly.
**You will need to increase the spring rate.
**The ride height rod needs to be changed to our shorter rod to compensate for the linear travel. Your stock rod could also be shortened to 95mm total length.
**We run at 27 mm of rear sag.
- Spring Rate needs to be increased ( +3).
- Ride height rod needs to be swapped for our rod (or shorten your rod's body to 95mm).
- The links are fitted with Ducati bearings and seals.
- CNC machined in billet 6061 aluminum.
- Clear anodized.
- Will fit 848/1098/1198.
Bellow is a list of spring rates to use on stock links. Weight includes the gears of the rider. When upgrading to our link, you should increase the spring rate by 15.0 Nmm.
140-160 Lbs – 80.0 Nmm
160-180 Lbs – 85.0 Nmm
180-200 Lbs – 90.0 Nmm
200-220 Lbs – 95.0 Nmm
220-240 Lbs – 100 Nmm
For setup information, contact firstname.lastname@example.org
